Common Sheet Metal Fabrication Problems and How Buyers Can Avoid Them
Many sheet metal fabrication problems begin before production starts. Incomplete drawings, unclear tolerances, unsuitable material choices and unverified finishing requirements can lead to dimensional errors, assembly problems or visible surface defects later in the process.
This guide explains common sheet metal fabrication issues, why they happen and how buyers can reduce production risk through better drawings, clearer specifications and sample approval. It is intended for procurement teams, engineers and product developers who need to review part quality before moving from design to production.
For buyers who need a supplier to review and manufacture custom parts, see E-mold’s Sheet Metal Fabrication capabilities.

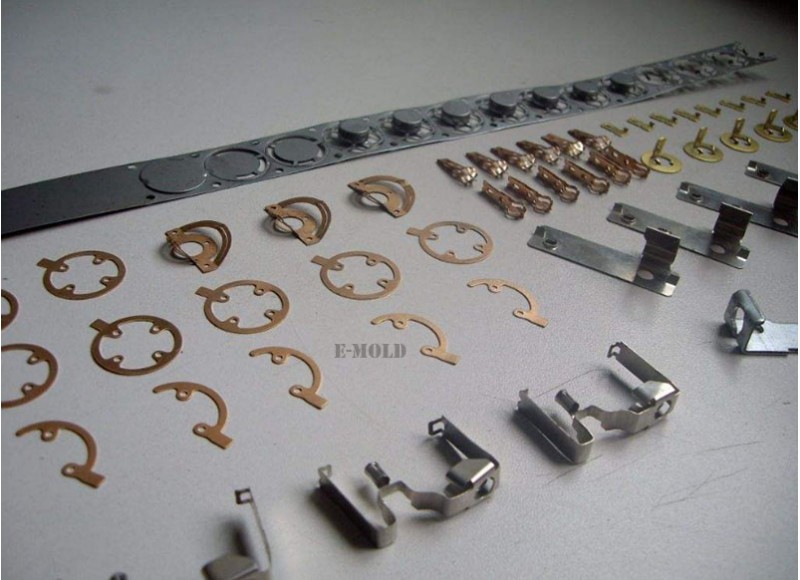

Dimensional Variation
Problem: Parts arrive with inconsistent dimensions or do not fit the intended assembly. This may appear as variation in overall size, hole position, bend angle or the relationship between multiple features.
Possible causes: Dimensional variation can result from material differences, bend springback, process sequence, machine setup, inaccurate reference datums or inconsistent measurement methods. When the drawing does not clearly identify which dimensions are critical, suppliers may inspect different features with different assumptions.
Prevention: Buyers should identify critical dimensions, define datums, specify the measurement method and make clear which features affect fit or performance. A sample approval process can also help establish the acceptable reference before volume production starts.
Bend Springback, Cracking and Deformation
Problem: A bend may not hold the intended angle, or the part may crack, distort or deform during forming. These issues are often visible in areas with tight bend radii or repeated forming operations.
Possible causes: Springback is the tendency of material to partially return toward its original shape after forming. Bend cracking can occur when the bend radius is too tight for the selected material and thickness. Distortion may also happen when the bend sequence is not planned carefully or when one bend interferes with another.
Prevention: Buyers should confirm the material and thickness early, mark the key bend angles on the drawing and ask for design evaluation before production. If the part is sensitive to forming, a pre-production sample can help confirm whether the bend sequence and radius are practical for the selected material.
To understand how the production sequence affects bend quality and feature placement, read How Sheet Metal Fabrication Works.
Hole Position and Accumulated Tolerance
Problem: Holes, slots or mounting features do not line up correctly, especially when the part must fit with another component or when several parts are assembled together.
Possible causes: Hole position problems often occur when holes are placed too close to bend lines, when multiple parts use different datums, or when tolerance accumulation has not been considered during design. Even if each individual feature is within tolerance, the combined result may still prevent proper assembly.
Prevention: Buyers should identify the installation datum, define the key hole positions and provide mating part information or an assembly drawing when possible. Assembly verification on a sample can help confirm that the final part fits as intended before batch production.
Surface Finishing Problems
Problem: The finished part shows scratches, color variation, coating adhesion problems, marking position errors or uneven appearance.
Possible causes: Finishing issues may arise when the coating method is not clearly defined, when cosmetic surfaces are not marked on the drawing, or when packaging and handling requirements are not specified. If logos, text or visible reference faces are not identified, the supplier may place markings in the wrong location or treat the wrong face as non-cosmetic.
Prevention: Buyers should specify the finish type, provide a color or appearance reference when needed, mark logo and text positions clearly and define the acceptable appearance standard. Packaging requirements should also be discussed early if the surface must remain protected after finishing.
For a broader supplier evaluation framework, see how to choose a sheet metal fabrication supplier.
Drawing and Specification Errors
Problem: The drawing package contains unclear notes, conflicting tolerances, inconsistent 2D and 3D files, missing material information or an outdated revision. These issues can create confusion before the part even enters production.
Possible causes: Drawing problems usually begin when the design is developed in multiple stages without proper revision control. If one file is updated but another is not, the supplier may receive conflicting instructions. Missing surface requirements or incomplete dimension notes can also lead to inconsistent interpretations.
Prevention: Buyers should provide one clearly controlled revision package and make sure that the 2D drawing, 3D file and purchase requirements all match. If the project has special tolerance or finishing needs, those requirements should be written explicitly rather than assumed.
How Buyers Can Reduce Production Risk
The most effective way to reduce production risk is to complete the technical review before ordering. Buyers should prepare complete drawings, identify critical dimensions, define reasonable tolerances and confirm the surface finish before production begins.
- Provide complete 2D drawings and 3D CAD files when available.
- Identify critical dimensions, bend locations and hole positions clearly.
- Set tolerances according to function rather than applying the same tolerance to every feature.
- Confirm the surface finishing method, cosmetic face and marking locations early.
- Approve samples before moving to larger production quantities.
- Use revision control so that all parties work from the same file set.
- Define inspection records, packaging requirements and acceptance criteria in advance.
Illustrative Case Study
This is a typical procurement scenario used to explain the process. It is not presented as a named E-mold customer case or as a verified project result.
Background: An OEM buyer received a sheet metal bracket that looked correct visually but would not assemble properly with the mating part. The bracket included several bends and a row of mounting holes, but the drawing did not clearly identify which features were critical.
Challenge: The supplier had interpreted the hole positions using a different datum than the buyer expected. The bend locations were also close to the mounting features, and the approval sample had not included a clear inspection standard for assembly fit.
Solution: The buyer and supplier rechecked the drawing, clarified the installation datum, marked the critical hole positions and defined the required inspection points for the sample. The assembly relationship was verified before the revised production plan was released.
Result: The revised requirements made the quotation and sample approval process more consistent, and the buyer reduced the risk of repeating the same assembly issue in later production.
Problem Prevention Checklist
Before confirming production, buyers can use the following checklist to review the most common risk points.
- Is the material and thickness defined?
- Are critical dimensions identified?
- Are bend locations and angles clear?
- Are hole positions linked to a datum?
- Are finishing requirements documented?
- Has a sample approval process been defined?
- Are inspection and packaging requirements clear?
Why These Problems Matter Before Ordering
Sheet metal fabrication problems are easier to prevent than to correct after production. Once a part has been formed, coated or assembled, even a small error in the drawing package can lead to delays, extra cost or avoidable rework.
Buyers who understand the common failure points can ask better questions, compare proposals more fairly and improve the quality of the final purchase decision. Clear drawings, sample approval and revision control are usually more effective than relying on assumptions during production.
